棒グラフを作成する
Example 12
この例では、3つのデータセットを含む単純な棒グラフを作成する方法を示します。
データはpDataクラスのAddPoint()メソッドを使用して設定されます。
グラフには、drawBarGraph()関数が呼び出される時の設定がTRUEの場合、影を描画します。
棒グラフを描画するときに、drawScale()のWithMarginにTRUEをセットしてスケールを設定してください。
このスクリプトを実行するとカレントディレクトリにExample12.phpファイルを作成します。

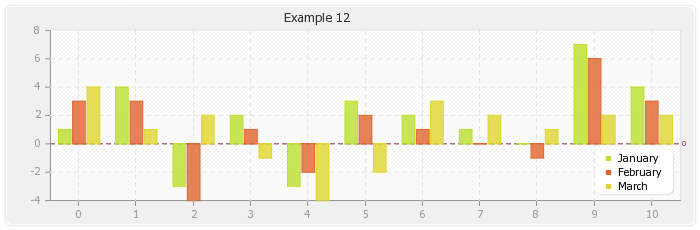

(訳注)この画像はサンプルコードのExample12.phpを出力したものです。
Example12.php ソースコード
<?php
/*
Example12 : A true bar graph
*/
// Standard inclusions
include("pChart/pData.class");
include("pChart/pChart.class");
// Dataset definition
$DataSet = new pData;
$DataSet->AddPoint(array(1,4,-3,2,-3,3,2,1,0,7,4),"Serie1");
$DataSet->AddPoint(array(3,3,-4,1,-2,2,1,0,-1,6,3),"Serie2");
$DataSet->AddPoint(array(4,1,2,-1,-4,-2,3,2,1,2,2),"Serie3");
$DataSet->AddAllSeries();
$DataSet->SetAbsciseLabelSerie();
$DataSet->SetSerieName("January","Serie1");
$DataSet->SetSerieName("February","Serie2");
$DataSet->SetSerieName("March","Serie3");
// Initialise the graph
$Test = new pChart(700,230);
$Test->setFontProperties("Fonts/tahoma.ttf",8);
$Test->setGraphArea(50,30,680,200);
$Test->drawFilledRoundedRectangle(7,7,693,223,5,240,240,240);
$Test->drawRoundedRectangle(5,5,695,225,5,230,230,230);
$Test->drawGraphArea(255,255,255,TRUE);
$Test->drawScale($DataSet->GetData(),$DataSet->GetDataDescription(),SCALE_NORMAL,150,150,150,TRUE,0,2,TRUE);
$Test->drawGrid(4,TRUE,230,230,230,50);
// Draw the 0 line
$Test->setFontProperties("Fonts/tahoma.ttf",6);
$Test->drawTreshold(0,143,55,72,TRUE,TRUE);
// Draw the bar graph
$Test->drawBarGraph($DataSet->GetData(),$DataSet->GetDataDescription(),TRUE,80);
// Finish the graph
$Test->setFontProperties("Fonts/tahoma.ttf",8);
$Test->drawLegend(596,150,$DataSet->GetDataDescription(),255,255,255);
$Test->setFontProperties("Fonts/tahoma.ttf",10);
$Test->drawTitle(50,22,"Example 12",50,50,50,585);
$Test->Render("example12.png");
?>
